UrBackup is an easy to setup Open Source client/server backup system, that through a combination of image and file backups accomplishes both data safety and a fast restoration time.

Urbackup一个针对文件及系统镜像做备份的开源工具，完全及增量常规的备份方式都支持，且还提供WebUI管理。

服务端通过docker快捷部署

通过数据卷，将UrBackup的备份目录和数据库目录挂载到本地目录下，在下载urbackup镜像前，要在本地创建需要映射数据卷的目录，如/media/backups和/media/database，在/media/backups中将保存实际备份数据

docker run -d --name urbackup-server-1 -v /media/backups:/backups -v /media/database:/var/urbackup -p 55413-55415:55413-55415 -p 35623:35623/udp uroni/urbackup-server

客户端安装

在web管理页面上添加client，将自动提示跳转到client安装页面，可选择不同平台的安装，支持windows，MacOS，Linux

TF=`mktemp` && wget "http://10.x.x.60:55414/x?a=download_client&lang=en&clientid=1&authkey=27Lr9gEQMU&os=linux" -O $TF && sh $TF; rm $TF--2019-08-05 17:43:51--  http://10.x.x.60:55414/x?a=download_client&lang=en&clientid=1&authkey=27Lr9gEQMU&os=linux
Connecting to 10.x.x.60:55414... connected.
HTTP request sent, awaiting response... 200 ok
Length: 12270056 (12M) [application/octet-stream]Saving to: “/tmp/tmp.cWS7RiPshi”

100%[===========================================================================================================================================================================>] 12,270,056  33.5M/s   in 0.3s

2019-08-05 17:43:52 (33.5 MB/s) - “/tmp/tmp.cWS7RiPshi” saved [12270056/12270056]Verifying archive integrity... All good.
Uncompressing UrBackup Client Installer for Linux  100%
Installation of UrBackup Client 2.3.4 to /usr/local ... Proceed ? [Y/n]yS
Uncompressing install data...
Assuming RedHat (derivative) system
Detected architecture x86_64-linux-glibc
Glibc not installed or too old. Falling back to ellcc build...
Installed daemon configuration at /etc/sysconfig/urbackupclient...
Info: Restoring from web interface is disabled per default. Enable by modifying /etc/sysconfig/urbackupclient.
Installing System V init script...
Starting UrBackup Client service...
Starting UrBackup client:                                  [  OK  ]Successfully started client service. Installation complete.
+Detected EL/RH 6. Dattobd supported
-Detected no btrfs filesystem
+Detected LVM volumes
Please select the snapshot mechanism to be used for backups:
1) dattobd volume snapshot kernel module from https://github.com/datto/dattobd
2) LVM - Logical Volume Manager snapshots
4) Use no snapshot mechanism
4
Configured no snapshot mechanism
rm: remove regular file `/tmp/tmp.cWS7RiPshi'?

在下载安装完客户端后，客户端进程将自动启动，无需再手动启动一次，通过查看socket可以看到urbackupclient

netstat -antlp | grep urbackup
tcp        0      0 0.0.0.0:35621               0.0.0.0:*                   LISTEN      12504/urbackupclien
tcp        0      0 0.0.0.0:35623               0.0.0.0:*                   LISTEN      12504/urbackupclien

在dnsmasq服务器上对osts文件备份,这里指定备份路径

urbackupclientctl add-backupdir -d /etc/hosts

查看当前urbackupclient的状态

urbackupclientctl status{"capability_bits": 65536,"finished_processes": [{"process_id": 1,"success": true}],"internet_connected": false,"internet_status": "no_server","last_backup_time": 1564998502,"running_processes": [],"servers": [{"internet_connection": false,"name": "10.x.x.60"}],"time_since_last_lan_connection": 23751}

查看备份目录路径

urbackupclientctl list-backupdirs
PATH       NAME  FLAGS
---------- ----- ----------------------------------------------
/etc/hosts hosts follow_symlinks,symlinks_optional,share_hashes

在客户端上执行完全备份

urbackupclientctl start -f
Waiting for server to start backup... done

进入容器，在服务端查看log，确认备份已成功

2019-08-05 09:50:46: Writing new file list...
2019-08-05 09:50:46: All metadata was present
2019-08-05 09:50:47: Transferred 6.38281 KB - Average speed: 165.992 KBit/s
2019-08-05 09:50:55: Time taken for backing up client 10.x.x.28: 10s
2019-08-05 09:50:55: Backup succeeded
2019-08-05 09:50:55: Updating statistics...
2019-08-05 09:50:55: Updating image stats...
2019-08-05 09:50:55: Updating file statistics...
2019-08-05 09:50:55: Done updating statistics.
2019-08-05 09:50:56: server_prepare_hash Thread finished (exit)2019-08-05 09:50:56: server_hash Thread finished - normal
2019-08-05 09:56:03: Looking for old Sessions... 3 sessions
2019-08-05 10:11:24: Looking for old Sessions... 3 sessions
2019-08-05 10:11:24: Session timeout: Session arichRrfTQmOBlWrofGiSHYdrnovZe

在服务器本地目录/media/backups，可以看到已经有备份数据了

ls -l /media/backups/
total 12
drwxr-x--- 5 systemd-resolve systemd-journal 4096 Aug  5 09:50 10.x.x.28
drwxr-x--- 2 systemd-resolve systemd-journal 4096 Aug  5 09:50 clients
drwxr-x--- 2 systemd-resolve systemd-journal 4096 Aug  5 10:14 urbackup_tmp_files

root@docker-srv60:/media/backups/10.x.x.28# ls -ltotal 12
drwxr-x--- 3 systemd-resolve systemd-journal 4096 Aug  5 09:47 190805-0947
drwxr-x--- 3 systemd-resolve systemd-journal 4096 Aug  5 09:49 190805-0948
drwxr-x--- 3 systemd-resolve systemd-journal 4096 Aug  5 09:50 190805-0950
lrwxrwxrwx 1 systemd-resolve systemd-journal   32 Aug  5 09:50 current -> /backups/10.x.x.28/190805-0950

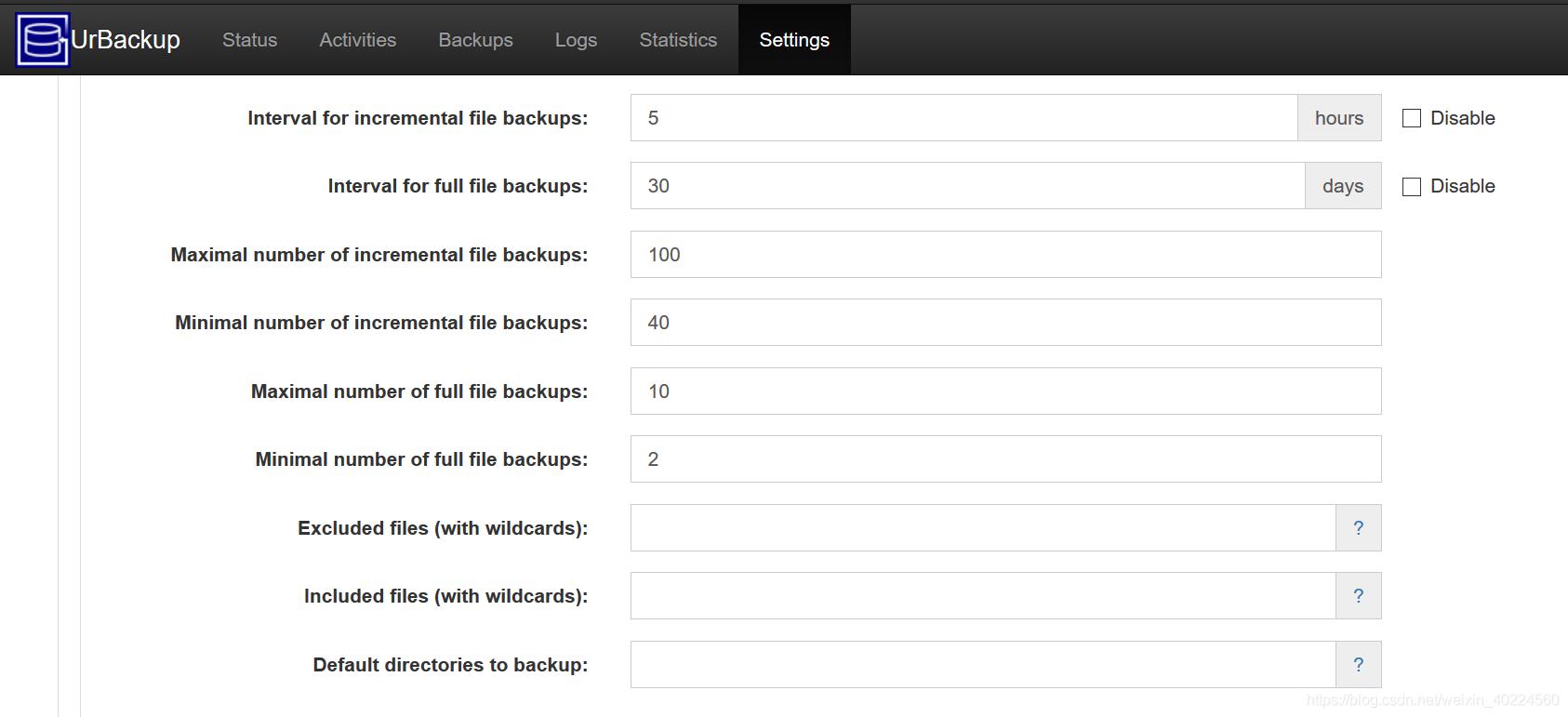

关于客户端的文件备份的默认设置

• Interval for incremental file backups:
  5 hours

• Interval for full file backups:
  30 days

相关配置

server dir

/etc/urbackup
/usr/share/urbackup
/var/urbackup
/backups/urbackup

client dir

/usr/local/var/urbackup
/usr/local/share/urbackup
/usr/local/etc/urbackup

client执行备份任务命令列表

urbackupclientctl -h

USAGE:

        urbackupclientctl [--help] [--version] <command> [<args>]Get specific command help with urbackupclientctl <command> --help

        urbackupclientctl start
                Start an incremental/full image/file backup

        urbackupclientctl status
                Get current backup status

        urbackupclientctl browse
                Browse backups and files/folders in backups

        urbackupclientctl restore-start
                Restore files/folders from backup

        urbackupclientctl set-settings
                Set backup settings

        urbackupclientctl reset-keep
                Reset keeping files during incremental backups

        urbackupclientctl add-backupdir
                Add new directory to backup set

        urbackupclientctl list-backupdirs
                List directories that are being backed up

        urbackupclientctl remove-backupdir
                Remove directory from backup set

clinet服务启动操作命令列表

 urbackupclientbackend -h

USAGE:

   urbackupclientbackend  [-r <client-confirms|server-confirms|disabled>]
                          [-c <path>] [-j <num>] [-g <bytes>] [-t] [-w                          <path>] [-i] [-d] [-v <debug|info|warn|error>]
                          [-l <path>] [--] [--version] [-h]Where:

   -r <client-confirms|server-confirms|disabled>,  --restore      <client-confirms|server-confirms|disabled>
     Specifies if restores are allowed and where they have to be confirmed

   -c <path>,  --config <path>
     Read configuration parameters from config file

   -j <num>,  --rotate-num-files <num>
     Max number of log files during rotation

   -g <bytes>,  --rotate-filesize <bytes>
     Maximum size of log file before rotation

   -t,  --no-consoletime
     Do not print time when logging to console

   -w <path>,  --pidfile <path>
     Save pid of daemon in file

   -i,  --internet-only
     Only connect to backup servers via internet

   -d,  --daemon
     Daemonize process

   -v <debug|info|warn|error>,  --loglevel <debug|info|warn|error>
     Specifies the log level

   -l <path>,  --logfile <path>
     Specifies the log file name

   --,  --ignore_rest
     Ignores the rest of the labeled arguments following this flag.

   --version
     Displays version information and exits.

   -h,  --help
     Displays usage information and exits.


   Run UrBackup Client Backend

terminating with uncaught exception of type TCLAP::ExitException
Aborted
